Can Koozie Dimensions: Size, Height and Length

Getting the right can koozie dimensions can save you from ordering mistakes that cost time and money. Whether you’re planning a wedding, promoting your business, or just making custom koozies at home, knowing the exact measurements matters.

This guide covers everything you need to know about koozie size, height, and length.

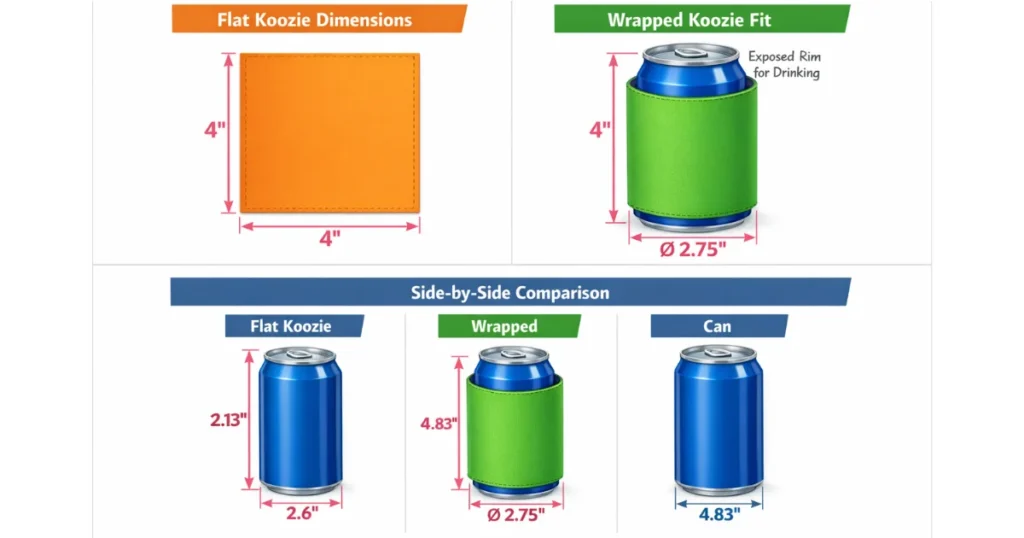

Standard Can Koozie Dimensions

The most common can koozie size fits the classic 12-ounce can you find everywhere. These dimensions work for beer, soda, sparkling water, and most canned beverages in the United States.

Standard koozies follow industry measurements that have been tested and proven over decades. These specifications ensure compatibility across different can brands and beverage types.

What Are the Dimensions of a 12 Oz Can Koozie?

A 12 oz can koozie measures 4 inches tall by 4 inches wide when laid flat. This creates a total surface area of 16 square inches for your designs and branding.

When wrapped around a standard can, these flat dimensions form a diameter of approximately 2.75 inches. The circumference measures about 8.6 inches, accounting for the seam where edges meet.

These standard koozie dimensions work perfectly for popular beverages including Budweiser, Coors, Miller, Coca-Cola, Pepsi, and Dr Pepper. The 4×4 measurement has become the industry standard because it accommodates the most common can size in America.

Material type affects final fit slightly. Neoprene koozies may measure 3.875 by 4 inches since the material stretches. Foam koozies typically stick to exact 4 by 4 inch measurements because the material stays rigid.

The 4-inch height is intentionally shorter than the actual can. This leaves the top rim exposed so you can drink comfortably while keeping the main body insulated where your hand grips.

How Big Are Standard Cans?

Standard 12 oz cans measure 4.83 inches tall and 2.6 inches in diameter. The top rim diameter narrows to 2.13 inches where your lips touch for drinking.

According to the Can Manufacturers Institute, over 60% of all canned beverages in the U.S. use this standard 12 oz size. That’s why the 4×4 koozie dimensions remain the most popular choice for promotional items and custom orders.

Slim Can Koozie Dimensions

Slim can koozies have grown tremendously popular as energy drinks, hard seltzers, and craft beers embrace this sleeker format. These beverages require different measurements than standard cans.

The slim can market has expanded by over 300% in recent years according to beverage industry reports. This growth drives demand for properly sized koozies that fit these taller, narrower containers.

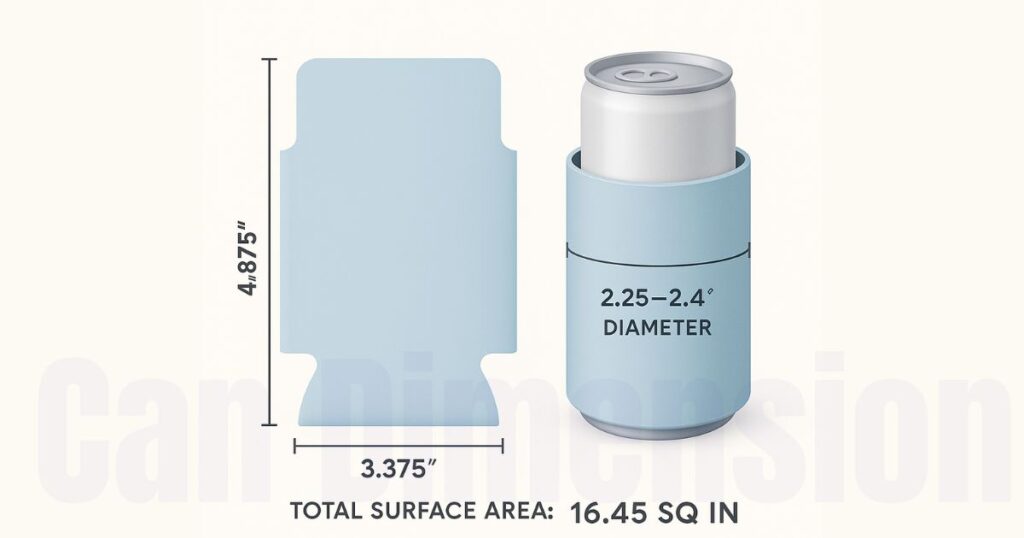

How Wide Are Slim Koozies?

Slim can koozies measure 4.875 inches tall by 3.375 inches wide when laid flat. This creates a total surface area of 16.45 square inches, slightly more than standard koozies.

The width measurement of 3.375 inches is notably narrower than standard koozies by 0.625 inches. This narrower profile matches the slimmer can design that’s become so popular.

When formed around a slim can, these dimensions create a diameter of approximately 2.25 to 2.4 inches depending on the specific beverage brand. Some energy drinks run slightly wider than hard seltzers.

The extra height of 4.875 inches accommodates cans that stand taller than traditional formats. Slim cans typically measure 5.5 to 6 inches tall, so the koozie covers most of the surface while leaving the top accessible.

Popular beverages requiring slim koozie dimensions include Red Bull, Monster Ultra, Bang Energy, White Claw, Truly, High Noon, and many craft beers. These brands have made slim cans their signature packaging.

Slim vs Standard: Size Comparison

The difference between standard and slim koozie dimensions is substantial. Standard koozies measure 4 inches tall while slim koozies stand 4.875 inches tall—that’s 0.875 inches taller.

Width comparison shows standard at 4 inches versus slim at 3.375 inches. Slim koozies are 0.625 inches narrower to match the can profile.

Measurement	Standard Koozie	Slim Koozie	Difference
Height	4 inches	4.875 inches	0.875″ taller
Width	4 inches	3.375 inches	0.625″ narrower
Diameter	~2.75 inches	~2.25-2.4 inches	Variable

Specialty Can Koozie Sizes

Beyond standard and slim formats, other can sizes require specific koozie dimensions. International beverages, tall boys, mini cans, and bottles each need their own measurements.

Understanding these specialty sizes helps you accommodate diverse beverage selections at events or in your product offerings.

500 mL Can Koozie Measurements

500 mL can koozies measure 127mm by 102mm in metric dimensions. Converting to imperial measurements gives you approximately 5 inches by 4 inches when laid flat.

This size works for international beverage formats common in European and Asian markets. Some energy drinks and import beers sold in America also use this slightly larger format.

The extra height of 5 inches compared to standard 4-inch koozies accommodates taller cans. The 4-inch width matches standard sizing since these cans maintain similar diameter to regular 12 oz formats.

Other Common Sizes

16 oz tall boy koozies measure approximately 4.5 inches by 6 inches flat. These fit craft beer tallboys, large energy drinks, and premium beverage formats that offer more volume.

Craft breweries love tallboy cans for flagship beers and special releases. The larger koozie dimensions provide more surface area for elaborate artwork and branding.

8 oz mini can koozies measure around 3.5 inches by 3.5 inches flat. These smaller dimensions fit kids’ juice boxes, small soda cans, and sample-size beverages.

Bottle koozies use completely different sizing at 4 inches by 7 inches with zipper closures. These accommodate long neck beer bottles and glass soda bottles. The zipper allows the koozie to open fully for easy bottle insertion.

Stubby bottle koozies run shorter and wider to match craft beer bottles. These measure roughly 3.5 inches by 5 inches with different closure systems.

What Size Should a Koozie Design Be?

Maximum printable area for standard koozies measures 3.75 inches wide by 4 inches high. However, the recommended safe design zone is 3.5 inches wide by 3.75 inches high.

Most professional designers keep logos within a 3 inch by 3 inch area for optimal visibility and impact. This central positioning ensures your design stays visible regardless of slight manufacturing variations.

Design placement options include center front positioning for maximum visibility. A 3 by 3 inch logo in the center creates the sweet spot where eyes naturally focus.

Full wrap designs can utilize the entire 4 by 4 inch surface area with proper bleed. This wraparound approach works well for patterns, photographs, or graphics that benefit from continuous coverage.

Front and back dual designs work for koozies where you want different messages on each side. Keep each design within 3 by 3 inches for the best results.

Some manufacturers offer bottom print areas measuring about 2.5 inches in diameter. This clever placement reveals itself when someone lifts the drink, creating a fun discovery moment.

Design Margins and Bleed

Safe margins of 0.25 to 0.5 inches from all edges protect your important elements. Manufacturing equipment can vary slightly, so margins prevent accidental cutting of text or logos.

Keep text at least 0.375 inches from any edge for guaranteed readability. This buffer zone accounts for material stretch, cutting variations, and seam placement.

Bleed requirements call for adding 0.125 inches (1/8 inch) beyond the trim line for full-coverage designs. This extra space ensures no white edges show if cutting runs slightly off-center.

Full wraparound designs especially need proper bleed. The extra design area gets trimmed away during manufacturing, leaving perfectly printed edges with no gaps.

Text readability demands minimum 12-point font for body copy on koozies. Headlines and important callouts should use 18-point or larger for easy reading on curved surfaces.

What Size DTF for Can Koozie?

Standard can koozie DTF dimensions max out at 3.5 inches wide by 3.75 inches high. The recommended size drops to 3.25 inches by 3.5 inches for optimal durability and adhesion.

Slim can koozie DTF transfers can reach 3 inches wide by 4.25 inches high maximum. However, most professionals stick with 2.75 inches by 4 inches for better long-term performance.

The universal safe size for DTF on any koozie is 3 inches by 3 inches. This dimension provides excellent visibility while leaving crucial border space for proper adhesion.

Can Koozie Dimensions for Printing Methods

Different printing techniques have specific size requirements based on equipment capabilities and process limitations. Understanding these specifications ensures successful results.

Choosing the right printing method depends on your design complexity, quantity needed, and budget available.

Screen Printing Dimensions

Print area specifications for screen printing max out at 3.5 inches wide by 4 inches high. This represents the largest area most screen printing equipment can handle on curved surfaces.

Minimum line width of 0.5mm ensures clean printing without details filling in. Finer lines may appear muddy or disappear completely during production.

Best for bold designs and solid colors, screen printing excels with simple graphics. Single-color logos in the 2 by 2 inch to 3 by 3 inch range produce sharp, professional results.

Multi-color designs need registration where each color aligns perfectly with others. Tolerance of ±0.5mm between colors means extremely detailed designs may not align perfectly.

Screen printing costs less per unit for large quantities but requires setup charges. Minimum orders often start at 50 to 100 pieces.

Sublimation Printing Dimensions

Sublimation can print the entire 4 by 4 inch surface with full bleed coverage. This method offers complete design freedom without white borders.

Requires polyester-coated koozies since sublimation ink only bonds with synthetic materials. White or light-colored koozies produce the most vibrant results.

Design files should be 4.125 by 4.125 inches including 0.125-inch bleed on all sides. This extra space prevents white edges if trimming runs slightly off-center.

Resolution needs 300 DPI minimum for sublimation printing. Photographs and detailed artwork require higher resolution at 400 to 600 DPI.

Color mode should be RGB for sublimation unlike most printing methods. The heat transfer process works differently with RGB color profiles.

Sublimation produces photo-quality results with unlimited colors at no extra cost. Small quantities work well since there are no screen setup charges.

Vinyl and HTV Dimensions

Cut sizes for vinyl and heat transfer vinyl should be 3 by 3 inches for most applications. Maximum size reaches 3.5 by 3.75 inches for larger designs.

Minimum detail size of 0.25 inches ensures clean weeding without tiny pieces pulling up. Intricate designs need careful size selection for successful weeding.

Multi-layer vinyl adds thickness with each color layer. This may require adjusting pressure settings on your heat press for proper adhesion.

Application settings run 305°F for 10 to 15 seconds with medium-firm pressure. These parameters work for most vinyl types on neoprene and foam koozies.

Vinyl works great for simple text, logos, and solid graphics. The material cost stays low and you can create single custom pieces without minimums.

Question’s

What is the size of a can koozie?

Standard can koozies measure 4 inches tall by 4 inches wide when flat, fitting most 12-ounce cans. Slim can koozies measure 4.875 inches tall by 3.375 inches wide for taller, narrower cans like energy drinks and hard seltzers.

What are the dimensions of a 12 oz can koozie?

A 12 oz can koozie is 4 inches in height and 4 inches in width when laid flat. When wrapped around a can, it forms a diameter of approximately 2.75 inches for a snug, insulating fit.

What size should a koozie design be?

Keep designs within 3.5 inches by 3.75 inches maximum, with a recommended safe zone of 3 inches by 3 inches. Maintain at least 0.375 inches margin from all edges to prevent cutting off logos or text.

What size DTF for can koozie?

DTF transfers should be 3.5 inches by 3.75 inches maximum, with 3.25 inches by 3.5 inches recommended for best results. The optimal size is 3 inches by 3 inches for all koozie types with proper margins.

What is a good size for DTF transfers?

3 inches by 3 inches balances visibility with durability on koozies. This size provides clear design viewing while leaving crucial border space that prevents edge peeling on curved surfaces.

Can you use DTF on koozies?

Yes, DTF works excellently on **neoprene, polyester-blend, and scuba foam koozies**. Apply at 305-315°F for 10-15 seconds with medium pressure using a pressing pillow. DTF lasts 25-50 washes with proper care. Avoid using on plain foam or silicone materials.

How big are standard cans?

Standard 12-ounce cans measure 4.83 inches tall and 2.6 inches in diameter. The top rim diameter is 2.13 inches. These standardized dimensions apply to most beer and soda cans sold in the United States.

How to make a DIY koozie?

Cut neoprene to 4.25 inches by 4.25 inches including seam allowance. Apply designs to a 3 inch by 3 inch centered area. Sew or glue a 0.25-inch seam along one edge. Attach 1 inch by 4 inch velcro strips on each end with 0.5-inch overlap.

How wide are slim koozies?

Slim koozies are 3.375 inches wide when laid flat, which is 0.625 inches narrower than standard koozies. Complete dimensions measure 4.875 inches tall by 3.375 inches wide, creating a diameter of approximately 2.25 to 2.4 inches when formed.

Conclusion

Getting can koozie dimensions right makes the difference between promotional items people actually use and ones that get tossed aside. The standard 4 inch by 4 inch measurement fits classic 12 oz cans perfectly, while 4.875 inch by 3.375 inch dimensions accommodate popular slim cans.
